DESCRIPTION
- Material of frame: Environmental protection material ABS.

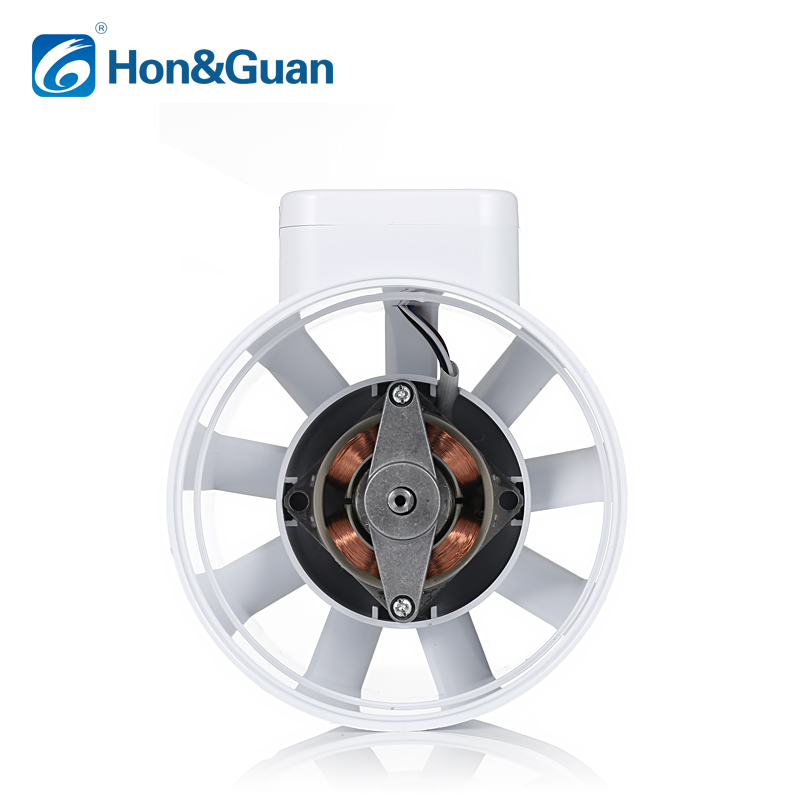

- Hydrodynamics technology fan blade, high efficiency, high air pressure and low noise.
- Japanese NMB ball bearing, long working life over 30,000 hours.
- The fan is designed of special clip for easier installation and maintenance.
- Protection Grade: IP44 protection level, dust proof and waterproof.
- Operation temperature range: -20℃-60℃.
- Setting angle: Horizontal, vertical and others angle.
Optional Functions
- Double speed switch
- Timer
- Temperature, humidity sensor
TECHNICAL SPECS

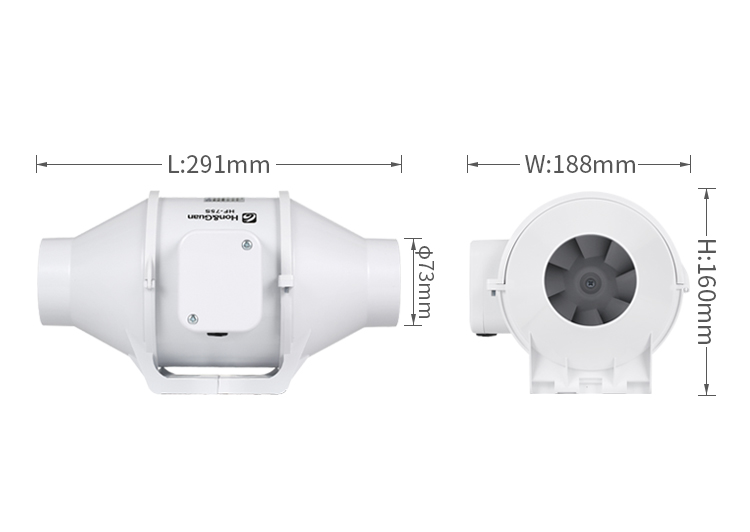

| Model | Speed | Voltage | Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |

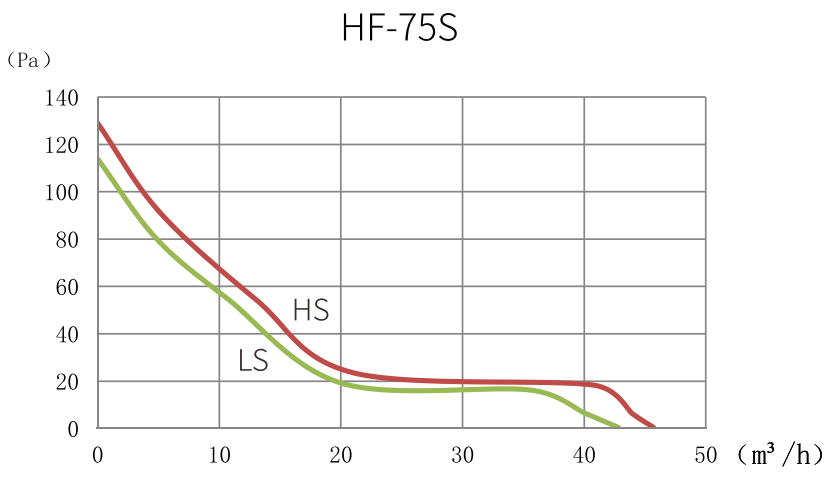

Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HF-75S | H | 220-240V/50Hz | 75 | 0.27 | 30 | 2750 | 46 | 129 | 26 | 1.4 |
| L | 0.12 | 16 | 2550 | 43 | 114 | 21 | ||||
| H | 100-120V/60Hz | 0.5 | 29 | 2750 | 46 | 129 | 26 | |||
| L | 0.42 | 25 | 2550 | 43 | 114 | 21 |
Q&A
- Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. f you require smaller quantitieswe will be happy to arrange an individual delivery. We would be delighted to assist you.
- Can i get a discount?
This depends on the specific situation, you can call directly to consult.
DOWNLOAD
