DESCRIPTION
- Fan casing: ABS material with beautiful lines and double insulation.
- Fan blade is designed in hydrodynamics technology, high efficiency, big air flow and low noise.
- Bearing: NMB ball bearing.
- Special design of joint for easy installation and maintenance.
- Protection Grade: IP44.
- Operation temperature range: -20℃-60℃.
Optional Functions
- Double speed switch
- Three-speed motor (high, middle, low)
- Timer
- Temperature, humidity sensor
TECHNICAL SPECS
Model
GF-100P
Speed
L/H
Voltage
220-240V/50Hz

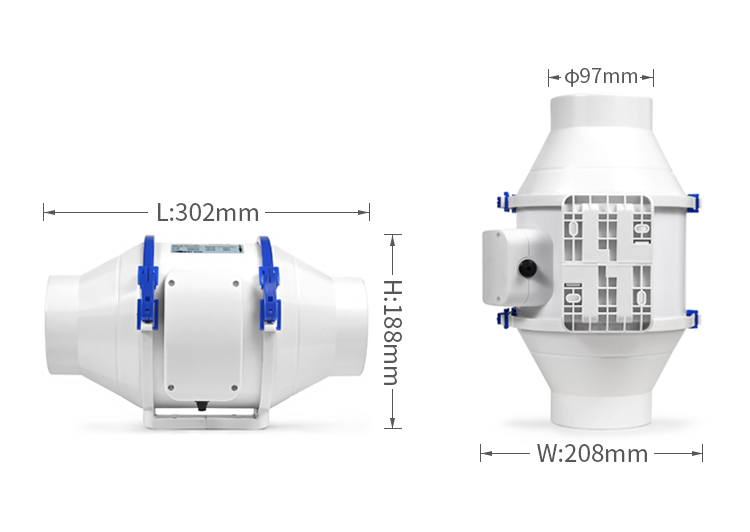

Diameter
100 mm
Current
0.11/0.12 Amps
Power
23/26W
Air Speed
1850/2200 RPM

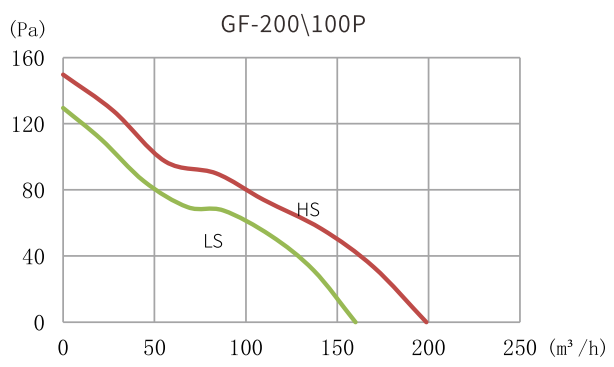

Airflow
165/198 m³/h
Air Pressure
131/156 Pa
Noise
26/31 dB
Net Weight
1.4 kg
Q&A
- Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. f you require smaller quantitieswe will be happy to arrange an individual delivery. We would be delighted to assist you.
- Can i get a discount?
This depends on the specific situation, you can call directly to consult.
DOWNLOAD
