DESCRIPTION

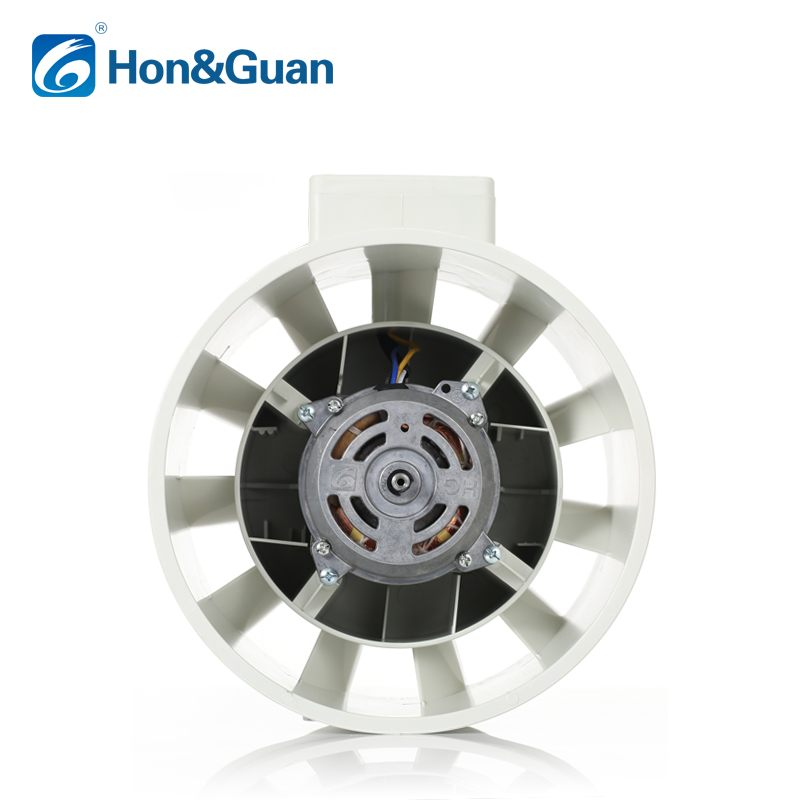

- Air Speed Selection: three-speed engine with NMB ball bearing, more than 50,000 hours of operation. Press the high / medium / low button to select the speed.
- Timer Set: Switch on the controller, short press the delay button once to delay 1min, and add 1 min every time you press the button, 30 minutes in total. Long press the delay button to cancel the timer function.
- Temperature monitoring: switch with temperature sensor Always monitor the room temperature.
- High performance: temperature control accuracy: ±1℃, self-consumption＜ 1W, relay switch more than 100,000 times.
- Shell: PC+ABS flame-retardant plastic.
- Note: This duct fan is with 0.8m power cord, no plug, need wiring. Controller is with 2.5 meter wire.

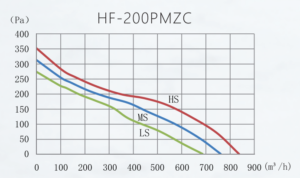

- Duct Size: 8”| Airflow: 494 CFM. | Air Pressure: 352 Pa | Noise: 63 dB | Bearings: Dual Ball
TECHNICAL SPECS
| Model | Speed | Voltage (V) |
Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |
Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HF-200PMZC | H | 220~240/50 | 200 | 0.54 | 128 | 2450 | 840 | 352 | 63 | 4.9 |
| M | 0.52 | 125 | 2200 | 765 | 313 | 59 | ||||
| L | 0.49 | 123 | 1950 | 690 | 274 | 55 |
