DESCRIPTION
- Fan body is made of environmental protection material with beautiful lines and light weight, double insulation.
- Fan blade is designed according to hydrodynamic principle to reach the optimal airflow and air pressure, high efficiency working and low energy consumption.

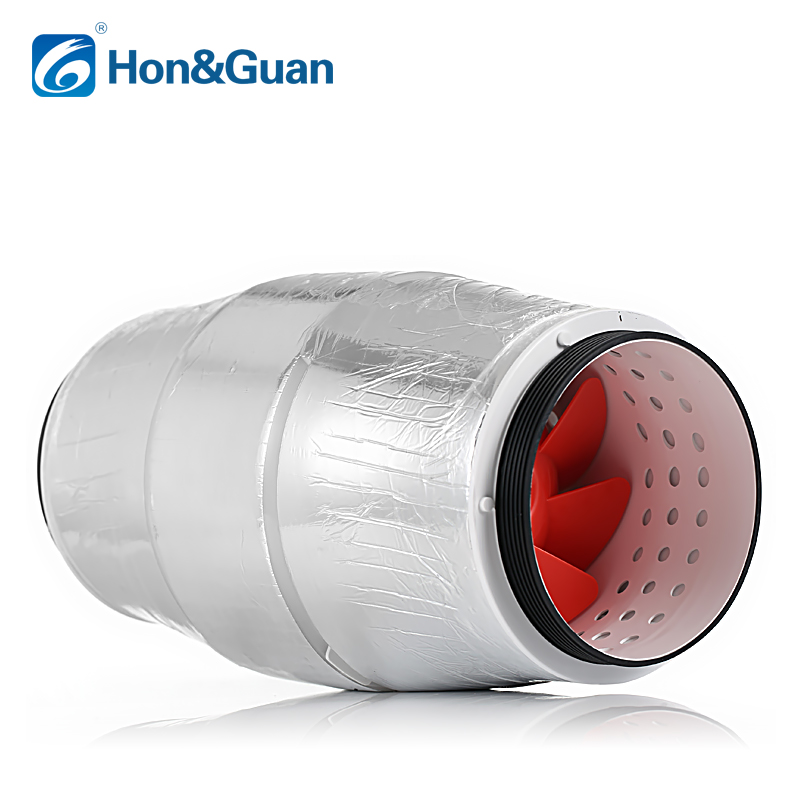

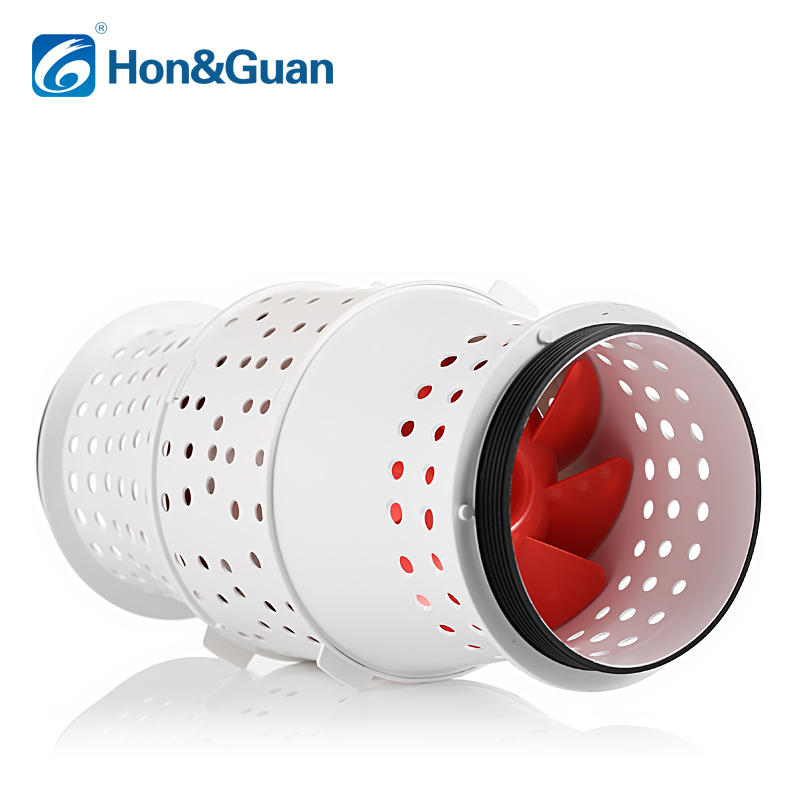

- Lower Noise: Fan inside produced with acoustic hole and acoustic cotton to reduce noise level.
- Backdraft damper designed inside, to prevent return air and insects.
- Protection class: IP44.
- Multi-function Support: Can be designed with user friendly features such as time delay, temperature sense, humidity sensor or other customized functions.
- Use to multi-scene: This series fans offers solution to ventilation problems, especially in places where people work and live and low sound level is required, such as meeting room, office, hotel, public place, residence, hospital, gym and etc.
- Duct Size: 6”| Airflow: 311 CFM | Air Pressure: 300 Pa | Noise: 31 dB | Bearings: Dual Ball.
Optional Functions
- Timer
- Double speed switch
- Temperature, humidity sensor
- Three-speed motor (high, middle, low)

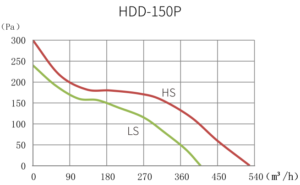

TECHNICAL SPECS
| Model | Speed | Voltage | Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |
Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HDD-150P | H | 220-240V/50Hz | 150 | 0.25 | 50 | 2550 | 530 | 300 | 31 | 4.0 |
| L | 0.20 | 43 | 1850 | 410 | 240 | 26 | ||||
| H | 100-120V/60Hz | 0.55 | 62 | 2550 | 530 | 300 | 31 | |||
| L | 0.45 | 49 | 1850 | 410 | 240 | 26 |
Q&A
- Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. f you require smaller quantitieswe will be happy to arrange an individual delivery. We would be delighted to assist you.
- Can i get a discount?
This depends on the specific situation, you can call directly to consult.
DOWNLOAD
