DESCRIPTION
- Fan body is made of eco-friendly PP plastic with beautiful lines and double insulation.
- Fan blade is designed according to fluid dynamics principle to reach optimal airflow and air pressure.
- Special design of joint for easy installation and maintenance, IP44 protection class.
- Japanese NMB ball bearing with long working life over 50000 hours.
- Operating temperature range: -20°C ~ 60°C.
- Perfect for place need ventilation such as homes, apartment, office, public place, hotel, hydroponics, plant grow.
- Duct Size: 12”| Airflow: 1297 CFM. | Air Pressure: 693 Pa | Noise: 69 dB | Bearings: Dual Ball
Optional Functions
- Timer
- Double speed switch
- Temperature, humidity sensor
- Three-speed motor (high, middle, low)

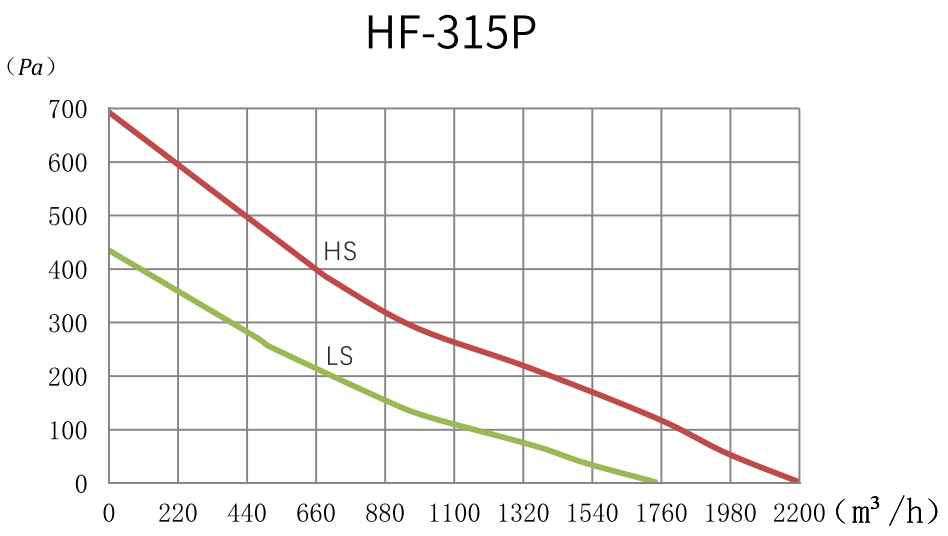

TECHNICAL SPECS
| Model | Speed | Voltage | Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |
Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HF-315P | H | 220-240V/50Hz | 315 | 1.9 | 390 | 2350 | 2206 | 693 | 69 | 11.0 |
| L | 1.4 | 275 | 1650 | 1750 | 435 | 61 | ||||
| H | 100-120V/60Hz | 3.7 | 412 | 2350 | 2206 | 693 | 69 | |||
| L | 3.0 | 330 | 1650 | 1750 | 435 | 61 |
Q&A
- Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. f you require smaller quantitieswe will be happy to arrange an individual delivery. We would be delighted to assist you.
- Can i get a discount?
This depends on the specific situation, you can call directly to consult.
