DESCRIPTION
- Fan body material: anti-acid and anti-alkali PP.
- The fan blade is designed according to hydrodynamics technology, reaches optimal air pressure and airflow.
- Motor protected against thermal overload and current overload, with double Japanese NMB ball bearings, long working life up to 50000 hours.

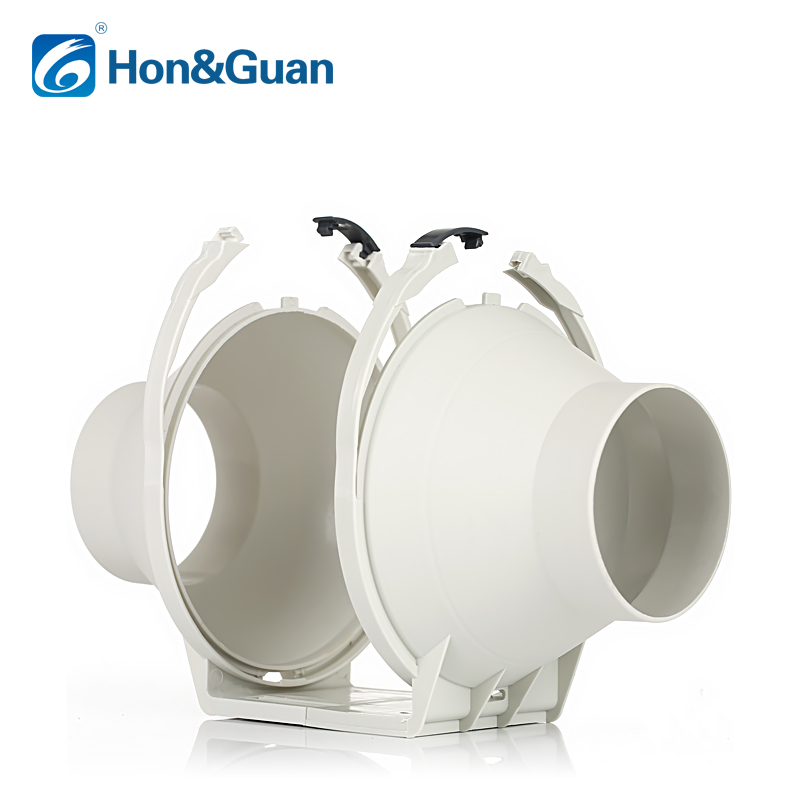

- The special design of joint for easy installation and maintenance.
- Protection Grade: IP44.
- Operation temperature range: -20℃-60℃.
Optional Functions
- Double speed switch
- Three-speed motor (high, middle, low)
- Timer
- Temperature, humidity sensor
TECHNICAL SPECS

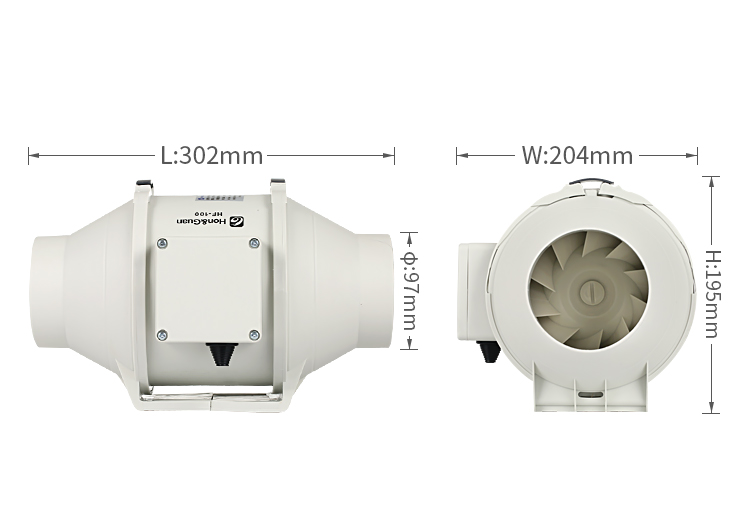

| Model | Speed | Voltage | Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |

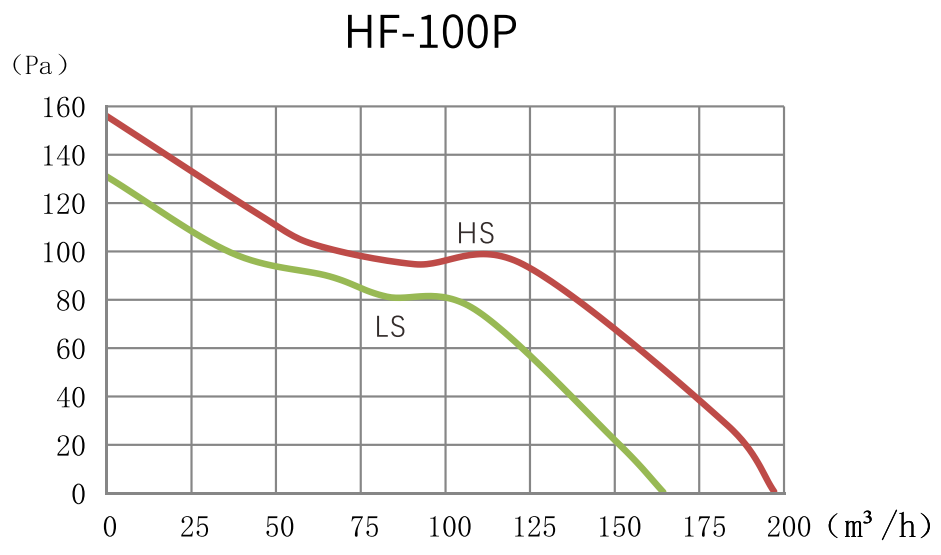

Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HF-100P | H | 220-240V/50Hz | 100 | 0.12 | 26 | 2200 | 198 | 156 | 31 | 1.5 |
| L | 0.11 | 23 | 1850 | 165 | 131 | 26 | ||||
| H | 100-120V/60Hz | 0.31 | 35 | 2200 | 198 | 156 | 31 | |||
| L | 0.28 | 30 | 1850 | 165 | 131 | 26 |
