DESCRIPTION
- The fan body is made of PP material, it’s anti-acid and alkali.
- The fan cowl is made of thickened stain-less steel, it’s ultraviolet-proof and water-proof.
- Fan blade is designed according to hydrodynamic principle to reach the optimal airflow and air pressure, high efficiency working and low energy consumption.
- Can be designed with user friendly features such as run on timer, temperature sense, humidity sensor or other customized functions.
- Double NMB ball bearings, long working life-over 50,000 hours.
- Protection Grade: IP44
- Operation temperature range: -20℃~60℃
- Duct Size: 6”| Airflow: 346CFM | Air Pressure: 360 Pa | Voltage: 220-240V
Optional Functions:
- Three-speed motor (high, middle, low)
- Timer
- Temperature, humidity sensor
TECHNICAL SPECS
| Model | Speed | Voltage (V) |

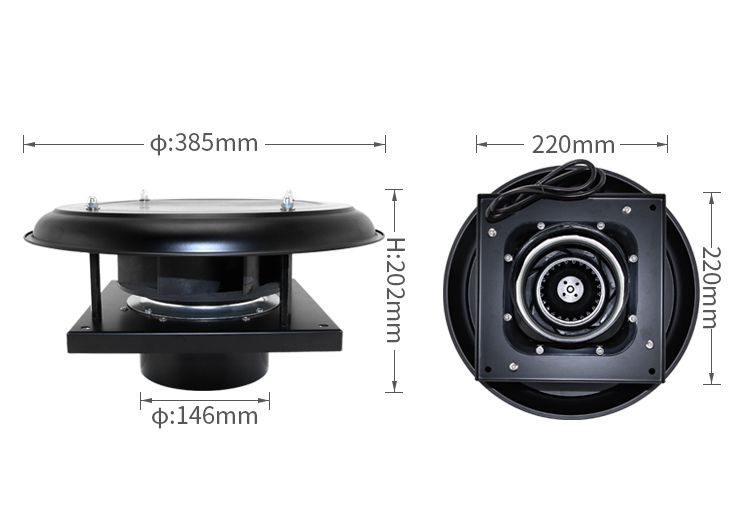

Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |

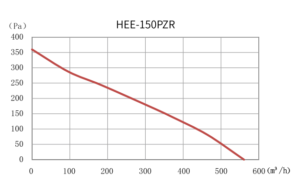

Air Pressure (Pa) |
Net Weight (Kg) |
| HEE-150PZR | / | 220~240/50 | 150 | 0.27 | 61 | 2550 | 588 | 360 | 3.3 |
Q&A
- Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. f you require smaller quantitieswe will be happy to arrange an individual delivery. We would be delighted to assist you.
- Can i get a discount?
This depends on the specific situation, you can call directly to consult.
DOWNLOAD
