DESCRIPTION
- Air Speed Selection: three-speed engine with NMB ball bearing, more than 50,000 hours of operation. Press the high / medium / low button to select the speed.
- Timer Set: Switch on the controller, short press the delay button once to delay 1min, and add 1 min every time you press the button, 30 minutes in total. Long press the delay button to cancel the timer function.
- Temperature monitoring: switch with temperature sensor Always monitor the room temperature.
- High performance: temperature control accuracy: ±1℃, self-consumption＜ 1W, relay switch more than 100,000 times.
- Shell: PC+ABS flame-retardant plastic.
- Note: This duct fan is with 0.8m power cord, no plug, need wiring. Controller is with 2.5 meter wire.
- Duct Size: 12”| Airflow: 1297 CFM. | Air Pressure: 693 Pa | Noise: 69 dB | Bearings: Dual Ball
TECHNICAL SPECS
| Model | Speed | Voltage (V) |

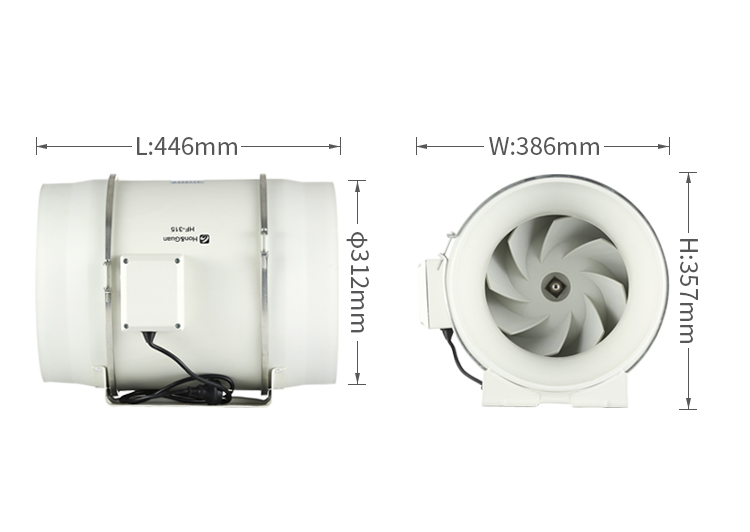

Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |
Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |

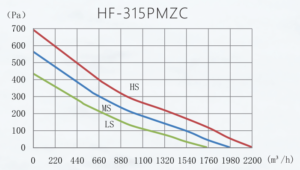

| HF-315PMZC | H | 220~240/50 | 315 | 1.90 | 390 | 2350 | 2206 | 693 | 69 | 11 |
| M | 1.70 | 333 | 2000 | 1950 | 564 | 65 | ||||
| L | 1.40 | 275 | 1650 | 1750 | 435 | 61 |
Q&A
- Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. f you require smaller quantitieswe will be happy to arrange an individual delivery. We would be delighted to assist you.
- Can i get a discount?
This depends on the specific situation, you can call directly to consult.
DOWNLOAD
