DESCRIPTION

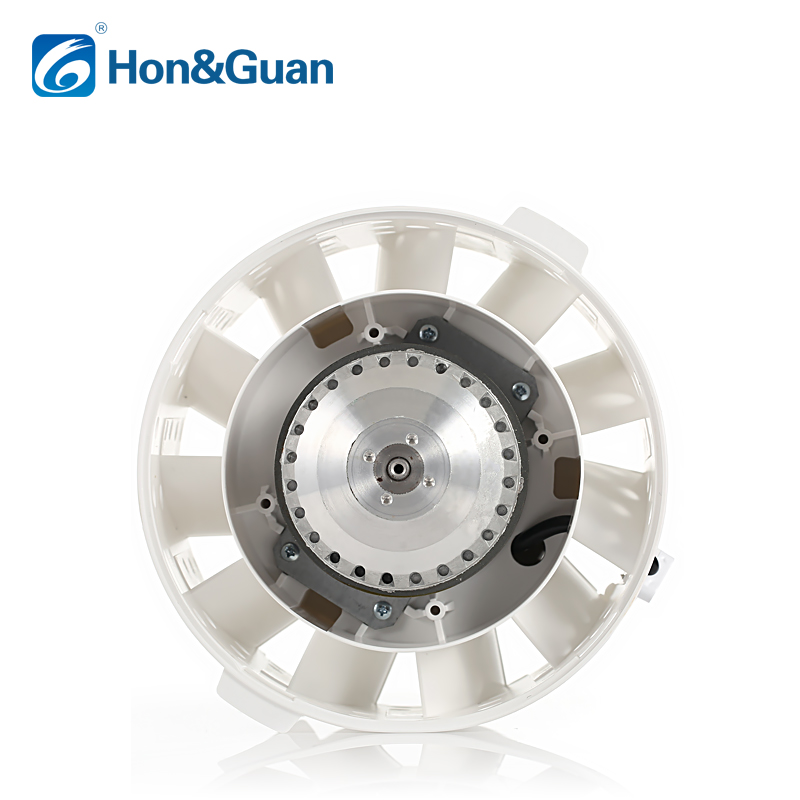

- Air Speed Selection: Three-speed engine with NMB ball bearing, more than 50,000 hours of operation. Press the high / medium / low button to select the speed.
- Timer Set: Switch on the controller, short press the delay button once to delay 1min, and add 1 min every time you press the button, 30 minutes in total. Long press the delay button to cancel the timer function.
- Temperature monitoring: Switch with temperature sensor Always monitor the room temperature.
- High performance: Temperature control accuracy: ±1℃, self-consumption＜ 1W, relay switch more than 100,000 times.
- Shell: PC+ABS flame-retardant plastic.
- Note: This duct fan is with 0.8m power cord, no plug, need wiring. Controller is with 2.5 meter wire.

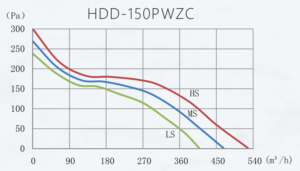

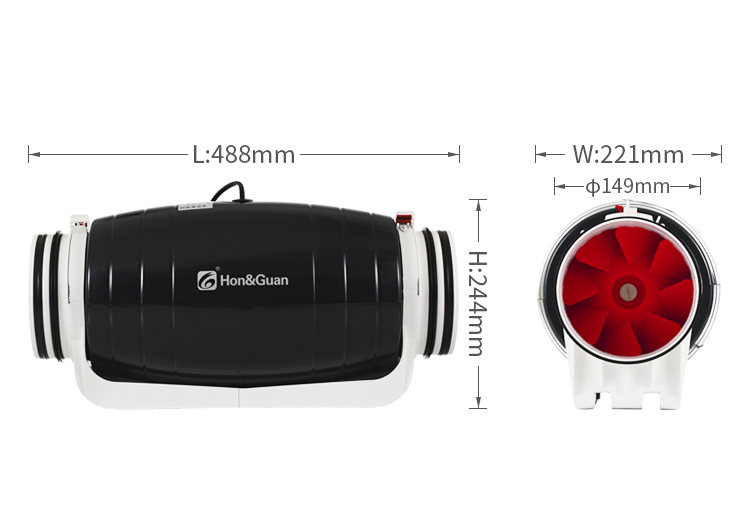

- Duct Size: 6”| Airflow: 311 CFM. | Air Pressure: 300 Pa | Noise: 31 dB | Bearings: Dual Ball.
TECHNICAL SPECS
| Model | Speed | Voltage (V) |
Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |
Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HDD-150PWZC | H | 220~240/50 | 150 | 0.25 | 50 | 2550 | 530 | 300 | 31 | 4.0 |
| M | 0.22 | 46 | 2200 | 470 | 270 | 29 | ||||
| L | 0.20 | 43 | 1850 | 410 | 240 | 26 |
