DESCRIPTION
- Duct fan housing is made of PP plastic, light, double insulation, with high anti-acid function.
- Protection class IP44.
- Ambient temperature -20 ~ 60 ℃.
- Outer rotor motor is used NMB ball bearings for more stability and quiet running and more than 50,000 hours of operation time.
- The wireless controller has a built-in sensor to monitor room temperature, humidity and VOC value in real time to enable intelligent operation of the fan. AUTO / manual mode freely switchable, 1-30 minutes timer setting.
- In automatic mode, the controller controls the fan at high speed when the air quality is higher than the set value (temperature, humidity, VOC value), and the fan stops only when the air quality is lower than the set value.
- Duct Size: 8”| Airflow: 494 CFM. | Air Pressure: 352 Pa | Noise: 63 dB | Bearings: Dual Ball

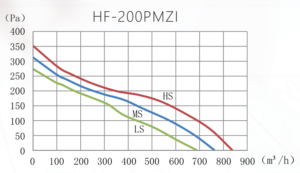

TECHNICAL SPECS
| Model | Speed | Voltage (V) |
Size (mm) |
Current (Amps) |
Power (W) |
Air Speed (RPM) |
Airflow (m³/h) |
Air Pressure (Pa) |
Noise (dB) |
Net Weight (Kg) |
| HF-200PMZI | H | 220~240/50 | 200 | 0.54 | 128 | 2450 | 840 | 352 | 63 | 4.9 |
| M | 0.52 | 125 | 2200 | 765 | 313 | 59 | ||||
| L | 0.49 | 123 | 1950 | 690 | 274 | 55 |
